Used Van Parts Replacement Guide: Clutch, Brakes & Major Components

A used van is a working tool. It earns its keep every day, hauling loads, covering miles, doing the jobs your business depends on. But like any tool, it needs maintaining, and the major components have finite lifespans that every van owner should understand.

This guide covers the major replacement items on diesel light commercial vans: what they do, when they typically need replacing, what the warning signs are, and roughly what you should budget.

1. The Clutch

What it Does

The clutch connects the engine to the gearbox, allowing the driver to change gear by temporarily disconnecting drive. In a typical manual van, the clutch assembly consists of three main components: the clutch disc (also called the friction plate), the pressure plate, and the release bearing (also called the thrust bearing). These work together to engage and disengage drive smoothly.

When Does a Van Clutch Need Replacing?

Clutch life varies enormously depending on use. A van driven primarily on motorways by a smooth, experienced driver may go 100,000 miles or more before needing a clutch. A van used for urban deliveries with frequent stopping and starting, or one that has regularly been used to tow or carry heavy loads, may need a clutch at 50,000–60,000 miles.

Signs Your Clutch Needs Attention

• Slipping — Engine revs rise but the van does not accelerate proportionally, particularly under load or on hills
• Difficulty selecting gears — Stiff or crunchy gear changes, especially into reverse or first
• Clutch biting point very high — Biting point near the top of the pedal travel suggests a worn clutch disc
• Burning smell — Particularly after hills or heavy use, indicates clutch slipping and overheating
• Juddering on take-off — Can indicate a worn or contaminated clutch disc

The Four Main Clutch Faults

1. Clutch slip — Worn friction material allowing the clutch to slip under load
2. Clutch drag — Clutch not fully disengaging, making gear selection difficult
3. Clutch judder — Vibration on engagement, often caused by contamination (oil or fluid on the friction plate) or worn engine mounts
4. Clutch chatter — A rattling noise when the clutch is partially engaged, usually the release bearing or worn pressure plate springs

What Gets Replaced?

When a clutch is done, it is almost always worth replacing the full clutch kit, disc, pressure plate, and release bearing together. Labour is the major cost in a clutch job, so replacing all three at once saves significant money compared to doing them separately.

2. The Brakes

What They Do

Van brakes typically use disc brakes on the front axle and either disc or drum brakes on the rear. The friction components which are brake pads (for discs) and brake shoes (for drums), press against the rotating disc or drum to create stopping force. Discs and drums themselves wear over time and eventually need replacing too.

Service Intervals

Brake pads on a van used for urban delivery work may need replacing every 20,000–30,000 miles. On a motorway-based van with lighter, less frequent braking, they may last 40,000–60,000 miles. Rear brakes typically wear more slowly than fronts.

Warning Signs

• Squealing or squeaking — Wear indicators on brake pads making contact with the disc
• Grinding noise — Pads have worn through completely; discs are now being damaged
• Pulling to one side under braking — Uneven brake wear or a sticking caliper
• Soft or spongy brake pedal — Air in the brake fluid or a failing master cylinder
• Brake warning light — On modern vans, often indicates pad wear sensor triggered

Brake Fluid

Brake fluid absorbs moisture over time, lowering its boiling point and reducing braking performance. It should be replaced every two years regardless of mileage, this is one of the most commonly overlooked maintenance items on used vans.

3. Timing Belt (or Timing Chain)

Why it Matters

The timing belt (or chain) synchronises the rotation of the crankshaft and camshaft, ensuring the engine’s valves open and close at the correct times. If a timing belt snaps, the results are catastrophic on most modern engines; the pistons and valves collide, causing engine destruction that can cost thousands to repair.

Belt vs Chain

• Timing belts are rubber and must be replaced on a scheduled interval, typically every 60,000–140,000 miles or five years, whichever comes first. Always check the manufacturer’s specific recommendation and verify it has been done on any used van you are buying.
• Timing chains are metal and generally last the life of the engine if oil is changed regularly. However, stretched chains rattle on startup and should not be ignored.

What to Check When Buying

Always ask for evidence that the timing belt has been replaced if the van is within or past its service interval. If there is no record, budget for it immediately.

4. Turbocharger

Most modern diesel vans are turbocharged. The turbo forces more air into the engine, increasing power and efficiency. Turbos can last the life of the vehicle if oil is changed regularly, but they are vulnerable to neglect.

Common Turbo Problems on Used Vans

• Blue smoke from exhaust — Oil burning in the turbo, often due to worn seals
• Loss of power — Turbo not boosting properly; could be a failed actuator, worn blades, or boost leak
• Whining or grinding noise — Turbo bearing wear
• Excessive oil consumption — Turbo seals failing

Turbo replacement on a common van is typically £500–£1,200 fitted. Regular oil changes with quality oil at the correct intervals are the single best way to extend turbo life.

5. Exhaust System

On modern Euro 6 diesel vans, the exhaust system includes a Diesel Particulate Filter (DPF) and in many cases, a Selective Catalytic Reduction (SCR) system. These are emissions-control devices that can cause significant issues if not properly maintained.

DPF Problems

The DPF traps soot and periodically burns it off through a process called regeneration. Short urban journeys do not allow the DPF to reach the regeneration temperatures, leading to blockage.

Avoid buying a used van that has had its DPF removed — this is illegal for road use in the UK, creates MOT failure, and can result in significant fines.

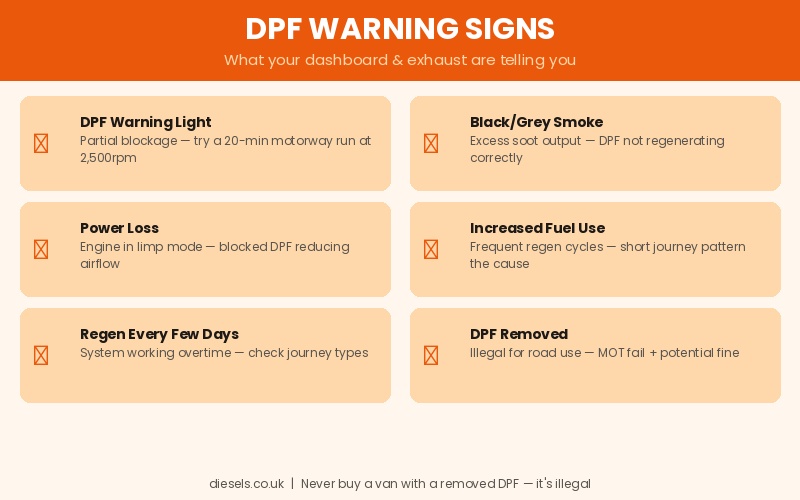

Signs of DPF trouble include a DPF warning light, reduced power, increased fuel consumption, and frequent regeneration cycles.

6. Suspension and Steering

Commercial vans carry heavy loads and cover high mileages. Suspension components such as shock absorbers, springs, bushes, ball joints, and track rod ends take considerable punishment. On a used van, particularly one with over 80,000 miles, it is worth having the suspension inspected.

Common Wear Items

• Shock absorbers: Typically 60,000–80,000 miles in commercial use
• Bushes and ball joints: Can deteriorate faster under load; look for clunking over bumps
• Wheel bearings: Humming noise that changes with steering input; safety-critical

Conclusion

Staying ahead of major component wear isn’t just about maintenance; it’s about protecting your business from unexpected downtime and costly repairs. By understanding typical service intervals and recognising early warning signs, you can plan replacements proactively rather than reacting to breakdowns when they happen.

Ultimately, a well-maintained van is more reliable, safer, and more cost-effective to run. Whether you’re buying used or managing an existing vehicle, taking a preventative approach to components like the clutch, brakes, and timing system will keep your van performing at its best for longer.

FAQs

What are the major components of a clutch?

The three main components are the clutch disc (friction plate), the pressure plate, and the release bearing. Together they manage engagement and disengagement of drive.

What part of the clutch needs replacing most often?

The clutch disc wears fastest as it carries the friction material. In most cases, the full clutch kit, disc, pressure plate, and release bearing is replaced together to save on repeat labour costs.

What are the four main clutch faults?

The four main faults are clutch slip (worn disc), clutch drag (not fully disengaging), clutch judder (contamination or worn mounts), and clutch chatter (release bearing or pressure plate noise).

What are the four functions of the clutch?

The clutch transmits engine power to the gearbox, allows smooth gear changes, enables the vehicle to move from rest without stalling, and protects the drivetrain from shock loads.
